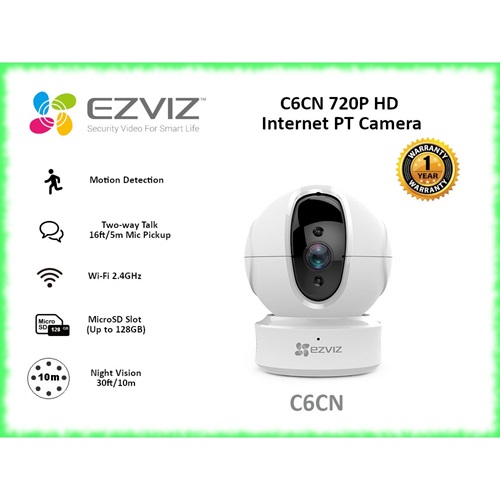

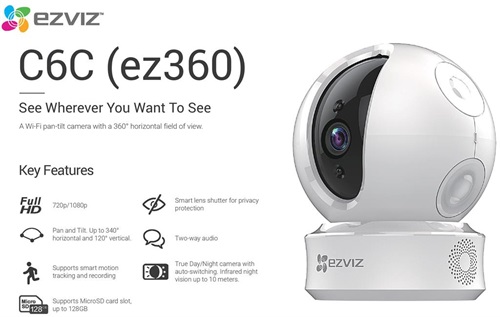

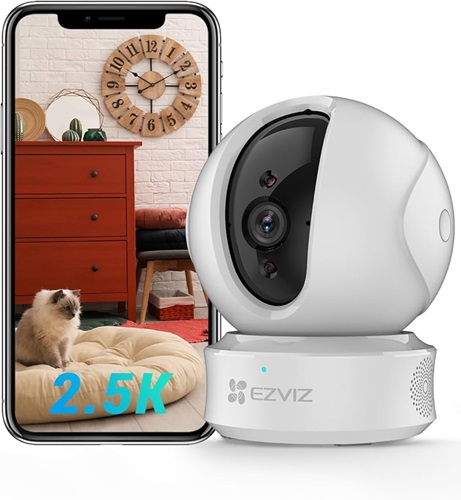

EZVIZ C6CN INTERNET PAN & TILT CAMERA

Model Parameters
Name: C6CN
Model: CS-CV246-A0-1C2WFR
Image Sensor: 1/2.9″ Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm@ F2.2, view angle:82? (Horizontal), 94?(Diagonal)
PT Angle: Pan: 340?, Tilt: 120?
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.264
H.264 Type: Main profile
Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate
Auto Bit Rate: Self-adaptive
Max. Resolution: 1920 x 1080
Frame Rate: Max. 15fps; Self-Adaptive during network transmission
Network
Smart Alarm: Motion detection
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
General Features: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Max. Bitrate: 2Mbps
Interface
Storage: Micro SD card (Max. 256G)
Power: Micro USB
Network: RJ45 ? 1(10M/100M Adaptive Ethernet Port)
Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
General
Power Supply: DC 5V/1A
Power Consumption: Max. 5.0W
IR Range: Max. 10 meters (32.8ft)
Product Dimensions: 87.7mm x 87.7mm x 112.7mm (3.45? x 3.45? x 4.43?)
Packaging Dimensions: 103mm x 103mm x 188mm (4.06? x 4.06? x 7.40?)
Weight: 260g(0.57lbs)
